The GH5T is a heavy-duty gantry with a 5-ton (11,000 lbs / 4,989.51 kg) lifting capacity. It is made of lightweight yet strong aluminum components. The gantry is available in three beam span configurations to match various lifting needs. It uses the same user-friendly 3-piece assembly system as other Sumner gantries. Locking casters allow easy positioning and stability. A pinch-free design enhances safety during setup. The unit includes adjustable height and span to accommodate different loads. Chain hoists are not included but can be mounted easily. An optional trolley assembly adds flexibility for moving suspended loads. The GH5T excels in high-capacity lifting scenarios.
GH5T Gantry Lift
Mobile Nav

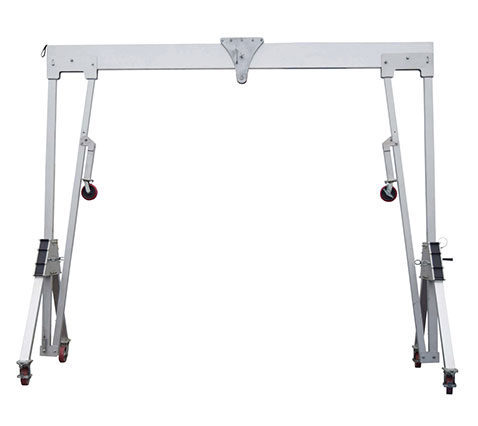

When your lifting demands reach the extreme, the SUMNER Material Lifts GH5T Gantry System delivers unmatched strength and portability. Designed to carry loads of up to 5 metric tons (11,000 lbs / 4,990 kg), this gantry system is purpose-built for lifting large, dense materials safely and efficiently. It is perfectly suited for use in factories, shipyards, power plants, and other heavy industrial operations where strength cannot be compromised.
Despite its formidable load capacity, the GH5T remains surprisingly portable thanks to its aluminum A-frame legs and cross beam. The system includes 8″ locking casters and arrives in a 3-piece format for easy setup, transport, and breakdown. This lightweight design allows for manual movement by just two people and eliminates the need for bulky lifting equipment to set up the gantry itself.
Adjustable in both height and span, the GH5T enables operators to fine-tune its configuration for the most efficient lifting geometry. The heavy-duty construction ensures stability even when supporting maximum loads, and its intuitive setup process avoids the need for specialized tools. With safety, speed, and scalability built into every part, this gantry system is a trusted workhorse for professionals handling critical loads.
SPECIFICATIONS
• Rated for 5 metric tons (11,000 lbs / 4,990 kg)
• High-strength aluminum frame and beam for reduced weight
• Three-piece modular build supports quick relocation
• 8″ lockable casters provide ground mobility
• Adjustable span and height for custom load setups
• Simple, two-person assembly without tools
• Low-maintenance corrosion-resistant structure
• Compatible with SUMNER Material Lifts trolleys and hoists
• Designed for large-scale, industrial lifting tasks
• Reinforced hardware for maximum load security
• 3 Fully aluminum construction
• 5 metric tons / 11,000 lbs capacity
• Push-button on A-frame leg to lock or release
• Built-in mast winch
• Swivel wheel with tire and swivel lock
| Part No. | Description | Model No. | Lifting Height Load Capacity |
| 785807 | Gantry GH-5T 10 ft / 3 m | GH2T-15×15 | 5 ton / 11,000 lbs / 4,990 kg |
| 785806 | Gantry GH-5T 13 ft / 4 m | GH2T-12×12 | 5 ton / 11,000 lbs / 4,990 kg |
| 785805 | Gantry GH-5T 16 ft / 5 m | GH2T-10×10 | 5 ton / 11,000 lbs / 4,990 kg |
| SHIPPING WEIGHTS & DIMENSIONS |
| 5 Ton Gantry A-Frames Pallet weight: 977 lbs / 443.08 kg Pallet dimensions: 154 x 16 x 44″ / 3,912 x 406 x 1,118 mm |
| Gantry Beam – 10′ Crate weight: 129 lbs / 58.51 kg Crate dimensions: 138 x 16 x 5″ / 3,505 x 406 x 127 mm |
| Gantry Beam – 12′ Crate weight: 174 lbs / 78.93 kg Crate dimensions: 164 x 16 x 5″ / 4,166 x 406 x 127 mm |
| Gantry Beam 15′ Crate weight: 220 lbs / 99.79 kg Crate dimensions: 198 x 16 x 5″ / 5,029 x 406 x 127 mm |
| OPTIONAL GH2 GANTRY ACCESSORIES | |||||
| Part No. | Description | Model No. | Lifting Height Load Capacity | Shipping Weight | Shipping Dimension |
| 785895 | GH5T trolley assembly | GH5TROL | n/a | n/a | n/a |
