Sumner’s standard lever hoists are designed for rugged, manual lifting operations. They come in models ranging from 1/4 to 6 tons. Each hoist includes a steel body with a 360° ratchet handle for easy operation. The design meets ANSI/ASME, OSHA, and CE standards. Top hooks are removable for rigging flexibility. The units use hard steel sheave rollers to manage load chain movement. Every model is tested to 1.5 times its rated load for safety. They are ideal for lifting, holding, or pulling in workshop and field settings. Available chain falls range from 5 to 20 feet. These hoists offer reliability for day-to-day industrial use.
Lever Hoists
Mobile Nav
| Product Name | Part number | Item Length | Height | Width | Weight |
| 1-1/2T LVR HST 10′ LH150C10 | 787547 | 148″ (3759.2 mm) | 190″ (4826.0 mm) | 4.331″ (110.0 mm) | 24.912 lb (11.30 kg) |
| 1-1/2T LVR HST 15′ LH150C15 | 787548 | 148″ (3759.2 mm) | 190″ (4826.0 mm) | 4.331″ (110.0 mm) | 24.912 lb (11.30 kg) |
| 1-1/2T LVR HST 20′ LH150C20 | 787549 | 148″ (3759.2 mm) | 190″ (4826.0 mm) | 4.331″ (110.0 mm) | 24.912 lb (11.30 kg) |
| 1-1/2T LVR HST 5′ LH150C05 | 787546 | 148″ (3759.2 mm) | 190″ (4826.0 mm) | 4.331″ (110.0 mm) | 24.912 lb (11.30 kg) |
| 1/2T LVR HST 10′ LH050C10 | 787540 | 107″ (2717.8 mm) | 118″ (2997.2 mm) | 2.441″ (62.0 mm) | 8.378 lb (3.80 kg) |
| 1/2T LVR HST 15′ LH050C15 | 787541 | 107″ (2717.8 mm) | 118″ (2997.2 mm) | 2.441″ (62.0 mm) | 8.378 lb (3.80 kg) |
| 1/2T LVR HST 5′ LH050C05 | 787539 | 107″ (2717.8 mm) | 118″ (2997.2 mm) | 2.677″ (68.0 mm) | 8.378 lb (3.80 kg) |

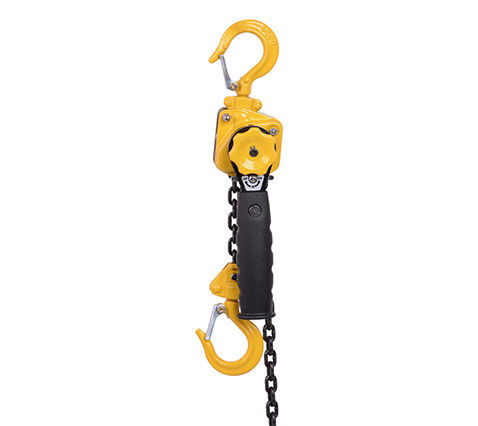

| 1/4T LVR HST 10′ LH025C10 | 787537 | 93″ (2362.2 mm) | 113″ (2870.2 mm) | 2.441″ (62.0 mm) | 4.189 lb (1.90 kg) |
| 1/4T LVR HST 15′ LH025C15 | 787538 | 93″ (2362.2 mm) | 113″ (2870.2 mm) | 2.441″ (62.0 mm) | 4.189 lb (1.90 kg) |
| 1/4T LVR HST 5′ LH025C05 | 787536 | 93″ (2362.2 mm) | 113″ (2870.2 mm) | 2.441″ (62.0 mm) | 4.189 lb (1.90 kg) |

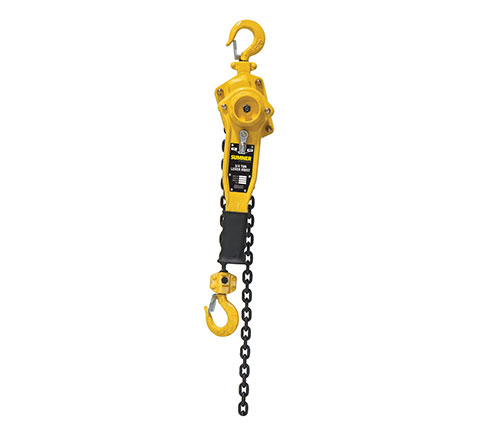

| 3/4T LVR HST 10′ LH075C10 | 787543 | 138″ (3505.2 mm) | 170″ (4318.0 mm) | 3.780″ (96.0 mm) | 14.110 lb (6.40 kg) |
| 3/4T LVR HST 15′ LH075C15 | 787544 | 138″ (3505.2 mm) | 170″ (4318.0 mm) | 3.780″ (96.0 mm) | 14.110 lb (6.40 kg) |
| 3/4T LVR HST 20′ LH075C20 | 787545 | 138″ (3505.2 mm) | 170″ (4318.0 mm) | 3.780″ (96.0 mm) | 14.110 lb (6.40 kg) |
| 3/4T LVR HST 5′ LH075C05 | 787542 | 138″ (3505.2 mm) | 170″ (4318.0 mm) | 3.780″ (96.0 mm) | 14.110 lb (6.40 kg) |

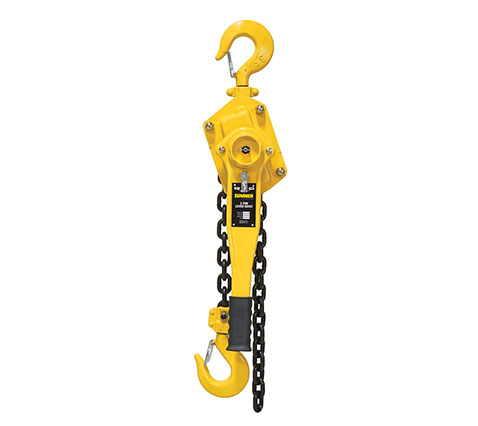

| 3T LVR HST 10′ LH300C10 | 787551 | 190″ (4826.0 mm) | 225″ (5715.0 mm) | 5.669″ (144.0 mm) | 42.549 lb (19.31 kg) |
| 3T LVR HST 15′ LH300C15 | 787552 | 190″ (4826.0 mm) | 225″ (5715.0 mm) | 5.669″ (144.0 mm) | 42.549 lb (19.31 kg) |
| 3T LVR HST 20′ LH300C20 | 787553 | 190″ (4826.0 mm) | 225″ (5715.0 mm) | 5.669″ (144.0 mm) | 42.549 lb (19.31 kg) |
| 3T LVR HST 5′ LH300C05 | 787550 | 190″ (4826.0 mm) | 225″ (5715.0 mm) | 5.669″ (144.0 mm) | 42.549 lb (19.31 kg) |
| 6T LVR HST 20′ LH600C20 | 787557 | 190″ (4826.0 mm) | 225″ (5715.0 mm) | 5.669″ (144.0 mm) | 69.005 lb (31.30 kg) |
| 6T LVR HST 5′ LH600C05 | 787554 | 190″ (4826.0 mm) | 225″ (5715.0 mm) | 5.669″ (144.0 mm) | 69.005 lb (31.30 kg) |
Features & Benefits
- Sumner’s Premium Lever Hoists offer an innovative and heavy-duty design to tackle your toughest lifts of various sizes! Our premium lever hoists include a single fused brake design and zinc phosphate load chain for superior corrosion resistance.
- Dual Pawl brake system
- 360 Degree Alloy Steel hooks
- Complies with ANSI/ASME, and OSHA Standards
- Heated treated load plates with internal components
