Series 2300 Drywall/HAVC Lift

The SUMNER Material Lifts Series 2300 Drywall / HVAC Lift is ideal for lifting lighter loads such as drywall panels or small HVAC products. Its lightweight design – just 99 lbs / 45 kg – makes it perfect for one-person operation in both residential and commercial environments. Despite its compact nature, it offers strong lifting performance, handling loads up to 150 lbs / 68 kg with maximum heights of 11′ 2.75″ – 14′ 9.75″ / 3.42 – 4.42 m.

The unit tilts up to 65° for optimal drywall installation and assembles tool-free, saving time on the job. With two models and specialized kits for both drywall and HVAC applications, the Series 2300 offers reliable, adaptable performance.

Request a Quote

Mobile Nav

Product Advantages

Features & Benefits

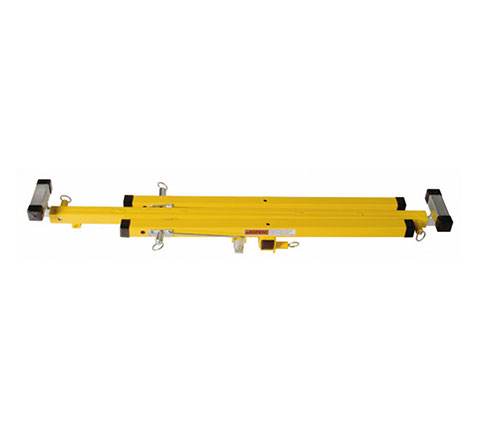

The Series 2300 lift is tailored for lifting drywall and lightweight HVAC components. It can raise loads up to 150 lbs / 68 kg to heights of either 11 ft 2.75″ / 3.42 m or 14 ft 9.75″ / 4.42 m. The lift is built from lightweight materials, weighing just 99 lbs / 45 kg for ease of mobility. It includes a two-speed winch for efficient operation. Tool-free setup makes it fast to assemble on-site. It’s designed for single-person operation in construction environments. The lifting head tilts 65 degrees to accommodate angled drywall installation. Available in drywall and HVAC-specific versions, it’s highly adaptable. It ships with a transport cart for convenience. The Series 2300 is ideal for quick installation tasks where speed and light weight are priorities.

SPECIFICATIONS
• Lifts up to 150 lbs / 68 kg
• Height range of 11′ 2.75″ – 14′ 9.75″ / 3.42 – 4.51 m
• Lightweight design (99 lbs / 45 kg) for single-person use
• Tilts 65° to ease drywall mounting
• Tool-free assembly
• Ideal for drywall and HVAC work
• Compact for storage and transport
• One-person operation capability
• Rugged, safe construction
• Two-speed winch for efficient control

Specifications

OPERATIONAL DIMENSIONS

Model No. Description Max. Load Height Min. Load Height Length Capacity Max. Drywall Dimensions Base Height Lift Weight
784345 2311 Drywall Lift 11′ 2¾” / 3.4 m 34″ / 860 mm 150 lbs / 70 kg 4′ x 12′ / 1.2 x 3.7 m 7″ / 180 mm 109 lbs / 49.4 kg
784346 2315 Drywall Lift 14′ 9¾” / 4.5 m 48″ / 1,220 mm 150 lbs / 70 kg 4′ x 12′ / 1.2 x 3.7 m 7″ / 180 mm 115 lbs / 52.1 kg
784332 2315 HVAC Lift 14′ 9¾” / 4.5 m 48″ / 1,220 mm 150 lbs / 70 kg n/a 7″ / 180 mm 87 lbs / 39.5 kg
2311HVAC 2311 HVAC Cradle Lift – 11 11′ 2¾” or 14′ 9¾” / 3.4 m or 4.5 m n/a 150 lbs / 70 kg n/a 7″ / 180 mm 112 lbs / 50 kg
Model No. Part No. Description Footprint Lifting Height Load Capacity

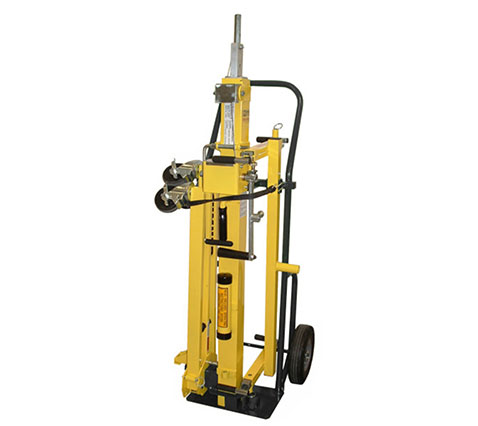

2311KIT 710010 2311 Drywall lift with cart 55 x 55 x 52″ / 1.4 x 1.4 x 1.3 m 11′ 2.75″ / 3.42 m 150 lbs / 68 kg
2315KIT 710011 2315 Drywall lift with cart 55 x 55 x 52″ / 1.4 x 1.4 x 1.3 m 14′ 9.75″ / 4.51 m 150 lbs / 68 kg
2311-HVAC KIT 710012 2311 HVAC lift with cart 55 x 55 x 52″ / 1.4 x 1.4 x 1.3 m 11′ 2.75″ / 3.42 m 150 lbs / 68 kg
 2315-HVAC KIT 710013 2315 HVAC lift with cart 55 x 55 x 52″ / 1.4 x 1.4 x 1.3 m 14′ 9.75″ / 4.51 m 150 lbs / 68 kg

SHIPPING DIMENSIONS

Model No. Part No. Description Shipping Weight Shipping Dimensions
2311KIT 710010 2311 Drywall lift with cart 198 lbs / 89 kg 62 x 32 x 35″ / 1,575 × 813 × 889 mm
2315KIT 710011 2315 Drywall lift with cart 209 lbs / 94 kg 62 x 32 x 35″ / 1,575 × 813 × 889 mm
2311-HVAC KIT 710012 2311 HVAC lift with cart 198 lbs / 89 kg 62 x 32 x 35″ / 1,575 × 813 × 889 mm
 2315-HVAC KIT 710013 2315 HVAC lift with cart 209 lbs / 94 kg 62 x 32 x 35″ / 1,575 × 813 × 889 mm
