The Series 2400 is a compact yet powerful lift with a load capacity of 450 lbs / 204 kg. It is designed for mobility, breaking down to just over 5 ft / 1.52 m in height for easy vehicle storage. Available in 12 ft / 3.66 m and 16 ft / 4.88 m models, it fits in most vans and SUVs. It features a 360° pulley guard for cable protection. Internal cable routing improves operator safety and tool longevity. Reversible forks help extend the lifting range without additional tools. Its compact frame is suitable for tight job sites and indoor tasks. Accessories like pipe cradles and trays enhance its versatility. The lift includes plunger pins to eliminate the need for extra assembly tools. It’s a reliable choice for contractors seeking a space-saving lifting solution.

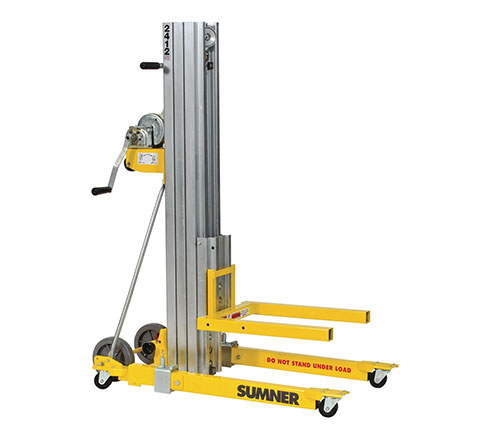

Series 2400 Contractor Lift
Mobile Nav
| Product Name | Part number | Item Length | Height | Width | Weight |
| 2412 CONTRACTOR LIFT 12FT 400LBS | 784750 | 48″ (1219.2 mm) | 62.76″ (1594.1 mm) | 40″ (1016.0 mm) | 226 lbs (102.51 kg) |
| 2416 CONTRACTOR LIFT (16’/450LBS.) | 784751 | 23″ (584.2 mm) | 62.76″ (1594.1 mm) | 26.42″ (671.1 mm) | 268 lbs (121.56 kg) |

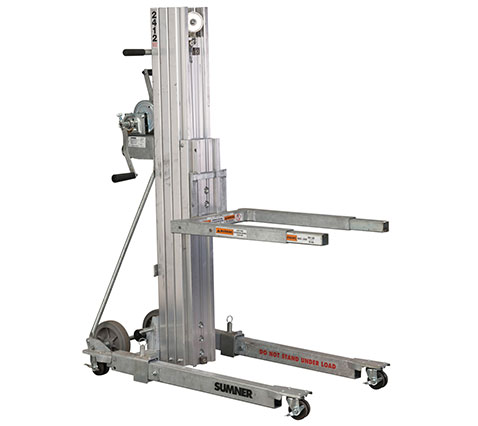

| 2412 CONTRACTOR LIFT (12’/400 LBS.) – GALVANIZED | 784752 | 23″ (584.2 mm) | 62.75″ (1593.9 mm) | 26.38″ (670.1 mm) | 195 lbs (88.45 kg) |
Features & Benefits
- Designed for loads up to 450 lbs.
- Compact 12′ and 16′ lifts

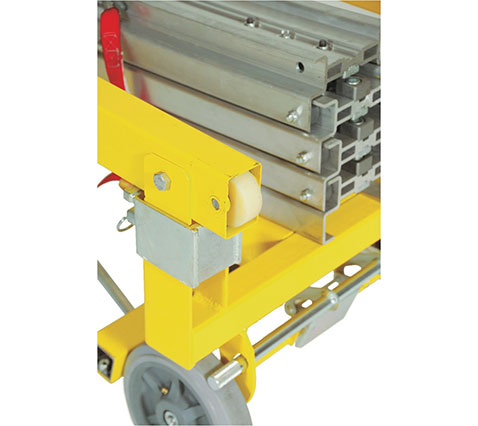

- Plunger pins eliminate extra tools and loose parts

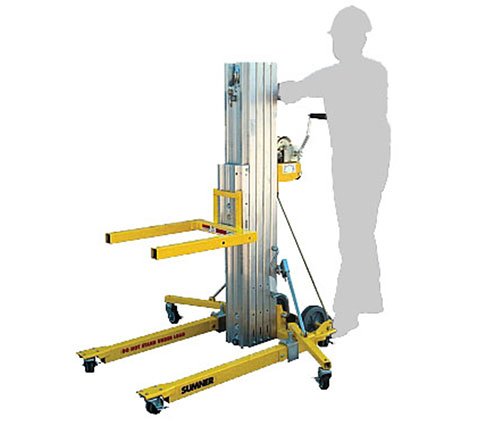

- Extremely portable for one-man operation
- Fits in most vans and SUVs

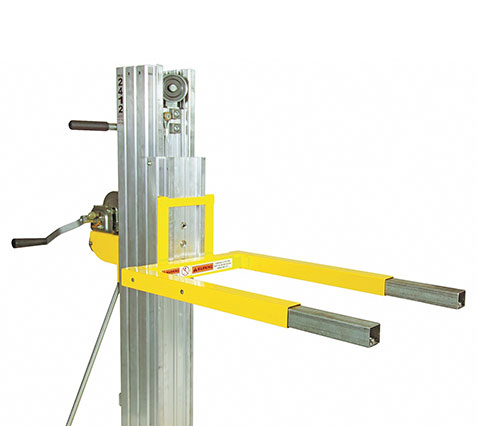

- Forks reverse to maximize lifting height
