SUMNER’s Chain Block Hoists are intended for vertical lifting in light industrial work. Models range in capacity from 1/2 to 10 tons. They are engineered with hard steel load sheave rollers for high durability. Top hooks are removable to suit a variety of rigging needs. Each hoist is tested to 1.5 times its rated load. The product line meets ANSI/ASME, OSHA, and CE hoisting standards. Available chain fall lengths include 10, 15, 20, and 30 feet. The hoists are designed for ease of use and long service life. Compact and efficient, they are ideal for fixed-location lifting. These are dependable units for routine lifting operations.
Chain Block Hoists
Mobile Nav
| Product Name | Part number | Item Length | Height | Width | Weight |

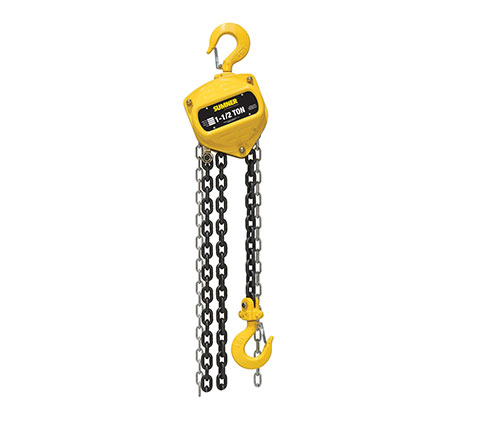

| 1-1/2T CHN HST 10′ CB150C10 | 787566 | 285″ (7239.0 mm) | 215″ (5461.0 mm) | 6.811″ (173.0 mm) | 33.951 lb (15.41 kg) |
| 1-1/2T CHN HST 15′ CB150C15 | 787567 | 285″ (7239.0 mm) | 215″ (5461.0 mm) | 6.811″ (173.0 mm) | 33.951 lb (15.41 kg) |
| 1-1/2T CHN HST 20′ CB150C20 | 787568 | 285″ (7239.0 mm) | 215″ (5461.0 mm) | 6.811″ (173.0 mm) | 33.951 lb (15.41 kg) |
| 1-1/2T CHN HST 30′ CB150C30 | 787569 | 285″ (7239.0 mm) | 215″ (5461.0 mm) | 6.811″ (173.0 mm) | 33.951 lb (15.41 kg) |
| 1/2T CHN HST 10′ CB050C10 | 787558 | 198″ (5029.2 mm) | 173″ (4394.2 mm) | 5.118″ (130.0 mm) | 17.196 lb (7.80 kg) |
| 1/2T CHN HST 15′ CB050C15 | 787559 | 198″ (5029.2 mm) | 173″ (4394.2 mm) | 5.118″ (130.0 mm) | 17.196 lb (7.80 kg) |
| 1/2T CHN HST 20′ CB050C20 | 787560 | 198″ (5029.2 mm) | 173″ (4394.2 mm) | 5.118″ (130.0 mm) | 17.196 lb (7.80 kg) |
| 1/2T CHN HST 30′ CB050C30 | 787561 | 243″ (6172.2 mm) | 173″ (4394.2 mm) | 5.118″ (130.0 mm) | 17.196 lb (7.80 kg) |

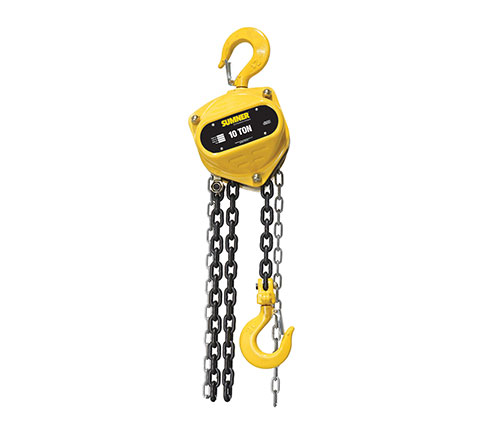

| 10T CHN HST 15′ CB1KC15 | 787583 | 220″ (5588.0 mm) | 235″ (5969.0 mm) | 14.370″ (365.0 mm) | 203.487 lb (92.32 kg) |
| 10T CHN HST 20′ CB1KC20 | 787584 | 220″ (5588.0 mm) | 235″ (5969.0 mm) | 14.370″ (365.0 mm) | 203.487 lb (92.32 kg) |
| 10T CHN HST 30′ CB1KC30 | 787585 | 220″ (5588.0 mm) | 235″ (5969.0 mm) | 14.370″ (365.0 mm) | 203.487 lb (92.32 kg) |
| 1T CHN HST 10′ CB100C10 | 787562 | 238″ (6045.2 mm) | 193″ (4902.2 mm) | 6.102″ (155.0 mm) | 24.912 lb (11.30 kg) |
| 1T CHN HST 15′ CB100C15 | 787563 | 238″ (6045.2 mm) | 193″ (4902.2 mm) | 6.102″ (155.0 mm) | 24.912 lb (11.30 kg) |
| 1T CHN HST 20′ CB100C20 | 787564 | 238″ (6045.2 mm) | 193″ (4902.2 mm) | 6.102″ (155.0 mm) | 24.912 lb (11.30 kg) |
| 1T CHN HST 30′ CB100C30 | 787565 | 238″ (6045.2 mm) | 193″ (4902.2 mm) | 6.102″ (155.0 mm) | 24.912 lb (11.30 kg) |
| 2T CHN HST 10′ CB200C10 | 787570 | 280″ (7112.0 mm) | 210″ (5334.0 mm) | 7.283″ (185.0 mm) | 38.360 lb (17.41 kg) |
| 2T CHN HST 15′ CB200C15 | 787571 | 280″ (7112.0 mm) | 210″ (5334.0 mm) | 7.283″ (185.0 mm) | 38.360 lb (17.41 kg) |
| 2T CHN HST 20′ CB200C20 | 787572 | 280″ (7112.0 mm) | 210″ (5334.0 mm) | 7.283″ (185.0 mm) | 38.360 lb (17.41 kg) |
| 2T CHN HST 30′ CB200C30 | 787573 | 300″ (7620.0 mm) | 210″ (5334.0 mm) | 7.283″ (185.0 mm) | 38.360 lb (17.41 kg) |
| 3T CHN HST 10′ CB300C10 | 787574 | 300″ (7620.0 mm) | 210″ (5334.0 mm) | 9.252″ (235.0 mm) | 53.572 lb (24.30 kg) |
| 3T CHN HST 15′ CB300C15 | 787575 | 300″ (7620.0 mm) | 210″ (5334.0 mm) | 9.252″ (235.0 mm) | 53.572 lb (24.30 kg) |
| 3T CHN HST 20′ CB300C20 | 787576 | 300″ (7620.0 mm) | 210″ (5334.0 mm) | 9.252″ (235.0 mm) | 53.572 lb (24.30 kg) |
| 3T CHN HST 30′ CB300C30 | 787577 | 320″ (8128.0 mm) | 210″ (5334.0 mm) | 9.252″ (235.0 mm) | 53.572 lb (24.30 kg) |

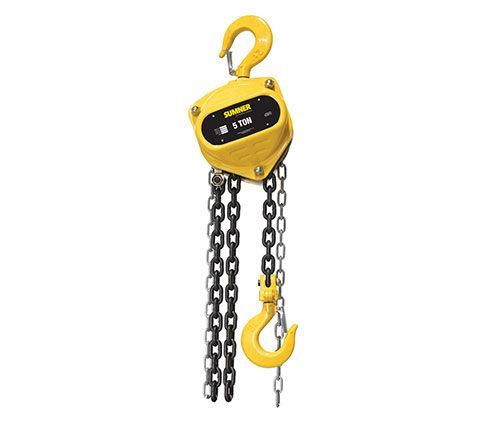

| 5T CHN HST 10′ CB500C10 | 787578 | 350″ (8890.0 mm) | 210″ (5334.0 mm) | 10.315″ (262.0 mm) | 84.878 lb (38.51 kg) |
| 5T CHN HST 15′ CB500C15 | 787579 | 350″ (8890.0 mm) | 210″ (5334.0 mm) | 10.315″ (262.0 mm) | 84.878 lb (38.51 kg) |
| 5T CHN HST 20′ CB500C20 | 787580 | 350″ (8890.0 mm) | 210″ (5334.0 mm) | 10.315″ (262.0 mm) | 84.878 lb (38.51 kg) |
| 5T CHN HST 30′ CB500C30 | 787581 | 350″ (8890.0 mm) | 210″ (5334.0 mm) | 10.315″ (262.0 mm) | 84.878 lb (38.51 kg) |
Features & Benefits
- Sumner’s Chain Block Hoists are designed to thrive in light industrial applications work with capacities ranging from 1/2-10 tons. Sumner’s Chain Block Hoist build on our legacy of reliable vertical lifting
- Dual Pawl brake system
- 360 Degree Alloy Steel hooks
- Complies with ANSI/ASME, and OSHA Standards
- Heated treated load plates with internal components
