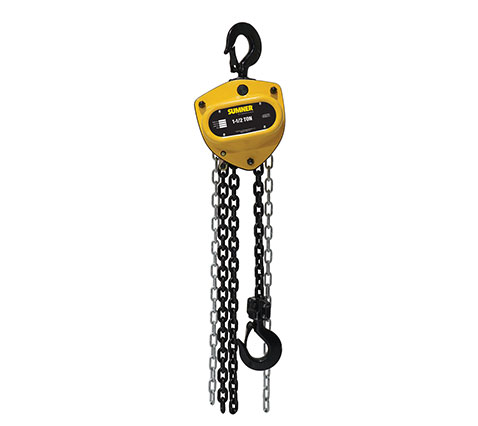

Premium Chain Block Hoists from Sumner add performance upgrades to the standard model. They feature low headroom design for use in confined spaces. Available capacities range from 1/4 ton to 20 tons. The chain is finished with zinc phosphate for added corrosion resistance. Each hoist includes removable top hooks for rigging convenience. The frame is designed for strength and safety under load. They are tested to 1.5x their rated capacity. Chain fall lengths come in 10, 15, 20, and 30 feet options. These hoists meet all regulatory standards for industrial lifting. They are well-suited for heavy-duty and long-term lifting tasks.
Premium Chain Block Hoists
Mobile Nav
| Product Name | Part number | Item Length | Height | Width | Weight |
| 1-1/2T CHN HST 10′ LIFT PCB150C10 | 787412 | 238″ (6045.2 mm) | 193″ (4902.2 mm) | 7.165″ (182.0 mm) | 34.392 lb (15.60 kg) |
| 1-1/2T CHN HST 15′ LIFT PCB150C15 | 787413 | 228″ (5791.2 mm) | 188″ (4775.2 mm) | 7.165″ (182.0 mm) | 34.392 lb (15.60 kg) |
| 1-1/2T CHN HST 20′ LIFT PCB150C20 | 787414 | 228″ (5791.2 mm) | 188″ (4775.2 mm) | 7.165″ (182.0 mm) | 34.392 lb (15.60 kg) |
| 1-1/2T CHN HST 30′ LIFT PCB150C30 | 787415 | 300″ (7620.0 mm) | 210″ (5334.0 mm) | 7.165″ (182.0 mm) | 34.392 lb (15.60 kg) |
| 1/2T CHN HST 10′ LIFT PCB050C10 | 787404 | 198″ (5029.2 mm) | 173″ (4394.2 mm) | 5.472″ (139.0 mm) | 23.810 lb (10.80 kg) |
| 1/2T CHN HST 15′ LIFT PCB050C15 | 787405 | 198″ (5029.2 mm) | 173″ (4394.2 mm) | 5.472″ (139.0 mm) | 23.810 lb (10.80 kg) |
| 1/2T CHN HST 20′ LIFT PCB050C20 | 787406 | 198″ (5029.2 mm) | 173″ (4394.2 mm) | 5.472″ (139.0 mm) | 23.810 lb (10.80 kg) |
| 1/2T CHN HST 30′ LIFT PCB050C30 | 787407 | 243″ (6172.2 mm) | 173″ (4394.2 mm) | 5.472″ (139.0 mm) | 23.810 lb (10.80 kg) |
| 1/4T CHN HST 10′ LIFT PCB025C10 | 787400 | 155″ (3937.0 mm) | 142″ (3606.8 mm) | 4.291″ (109.0 mm) | 8.598 lb (3.90 kg) |
| 1/4T CHN HST 15′ LIFT PCB025C15 | 787401 | 155″ (3937.0 mm) | 142″ (3606.8 mm) | 4.291″ (109.0 mm) | 8.598 lb (3.90 kg) |
| 1/4T CHN HST 20′ LIFT PCB025C20 | 787402 | 155″ (3937.0 mm) | 152″ (3860.8 mm) | 4.291″ (109.0 mm) | 8.598 lb (3.90 kg) |
| 1/4T CHN HST 30′ LIFT PCB025C30 | 787403 | 160″ (4064.0 mm) | 155″ (3937.0 mm) | 4.291″ (109.0 mm) | 8.598 lb (3.90 kg) |
| 1T CHN HST 10′ LIFT PCB100C10 | 787408 | 228″ (5791.2 mm) | 193″ (4902.2 mm) | 6.339″ (161.0 mm) | 27.337 lb (12.40 kg) |
| 1T CHN HST 15′ LFT PCB100C15 | 787409 | 228″ (5791.2 mm) | 193″ (4902.2 mm) | 6.339″ (161.0 mm) | 27.337 lb (12.40 kg) |
| 1T CHN HST 20′ LIFT PCB100C20 | 787410 | 228″ (5791.2 mm) | 193″ (4902.2 mm) | 6.339″ (161.0 mm) | 27.337 lb (12.40 kg) |
| 1T CHN HST 30′ LIFT PCB100C30 | 787411 | 228″ (5791.2 mm) | 193″ (4902.2 mm) | 6.339″ (161.0 mm) | 27.337 lb (12.40 kg) |
| 2T CHN HST 10′ LIFT PCB200C10 | 787416 | 248″ (6299.2 mm) | 203″ (5156.2 mm) | 7.953″ (202.0 mm) | 44.092 lb (20.00 kg) |
| 2T CHN HST 15′ LIFT PCB200C15 | 787417 | 248″ (6299.2 mm) | 203″ (5156.2 mm) | 7.953″ (202.0 mm) | 44.092 lb (20.00 kg) |
| 2T CHN HST 30′ LIFT PCB200C30 | 787419 | 285″ (7239.0 mm) | 245″ (6223.0 mm) | 7.953″ (202.0 mm) | 44.092 lb (20.00 kg) |
| 3T CHN HST 10′ LIFT PCB300C10 | 787420 | 300″ (7620.0 mm) | 210″ (5334.0 mm) | 9.252″ (235.0 mm) | 52.911 lb (24.00 kg) |
| 3T CHN HST 15′ LIFT PCB300C15 | 787421 | 300″ (7620.0 mm) | 210″ (5334.0 mm) | 9.252″ (235.0 mm) | 52.911 lb (24.00 kg) |
| 3T CHN HST 20′ LIFT PCB300C20 | 787422 | 300″ (7620.0 mm) | 210″ (5334.0 mm) | 9.252″ (235.0 mm) | 52.911 lb (24.00 kg) |
| 3T CHN HST 30′ LIFT PCB300C30 | 787423 | 320″ (8128.0 mm) | 210″ (5334.0 mm) | 9.252″ (235.0 mm) | 52.911 lb (24.00 kg) |
Features & Benefits
- Sumner’s Chain Block Hoists are designed to thrive in light industrial applications work with capacities ranging from 1/2-10 tons. Sumner’s Chain Block Hoist build on our legacy of reliable vertical lifting
- Fused Brake Design
- 360 Degree Alloy Steel hooks
- Complies with ANSI/ASME, and OSHA Standards
- Unique Zink phosphate chain design
- Heat-treated load plates and internal components
