The Series 2000 material lift is designed for heavy-duty lifting in construction and HVAC work. It is available in four models with capacities ranging from 650 – 1,000 lbs / 294 – 450 kg. Lifting heights range from 10 – 25 feet / 3.05 – 7.62 m, providing flexible use cases. The lift fits easily through doorways and includes an integrated lifting eye for aerial transport. A pulley guard ensures full cable coverage, enhancing operator safety. Reversible forks maximize vertical lifting height. Tool-free plunger pins simplify assembly and disassembly. The internal cable routing keeps the lift safe and clean. It supports several accessories, including pipe cradles, boom assemblies, and trays. The Series 2000 is a versatile and rugged lift for demanding work environments.
Series 2000 Material Lift
Mobile Nav

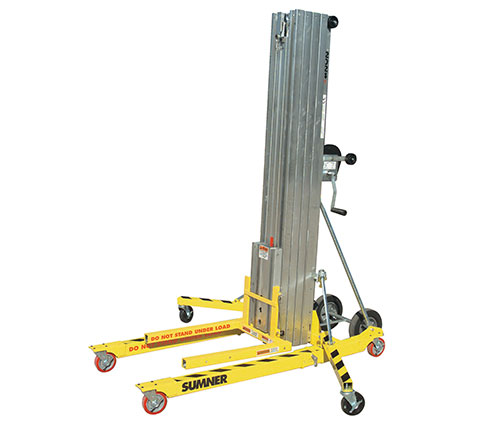

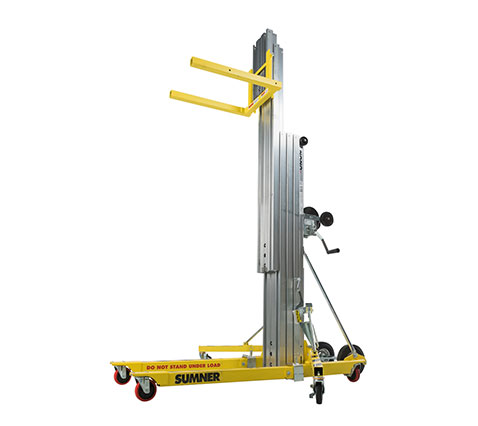

The Series 2000 Material Lift is a heavy-duty material lift tailored for contractors who regularly handle wider and heavier loads. Ideal for construction and HVAC applications, this robust lift is built to accommodate loads from 650 – 1,000 lbs / 295 – 450 kg and reach heights ranging from 10 – 25 ft / 3.05 – 7.62 m. The Series 2000 features SUMNER Material Lifts commitment to safety and efficiency, with a comprehensive cable protection system and internal cable routing to reduce wear and potential hazards.
Portability is also a strong suit of this model. It can be disassembled quickly, making it ideal for contractors who frequently transition between job sites. The unit’s design incorporates reversible forks, plunger pins for fast adjustments, and an integrated lifting eye, ensuring seamless usability and consistent safety. For contractors who demand a high-capacity, easy-to-transport lift that withstands tough environments, the Series 2000 is a trusted performer.
SPECIFICATIONS
• Handles loads from 650 – 1,000 lbs / 295 – 450 kg
• Lifting heights range from 10 – 25 ft / 3.05 – 7.62 m
• 360° cable guard for enhanced safety
• Reversible forks for maximum height flexibility
• Integrated lifting eye allows for aerial transport
• Plunger pins enable tool-free adjustments
OPERATIONAL DIMENSIONS
| Model No. | Height Stowed | Length Stowed | Height Operating | Width with Stabilizer Legs | Ground Clearance | Load Height Min. | Max. Height Forks Down | Max. Height Forks Reversed |
| 2010 | 6′ 4″ / 1.93 m | 34″ / 0.86 m | 6′ 4″ / 1.93 m | 6′ 2″ / 1.86 m | 2½” / 64 mm | 6″ / 152 mm | 9′ 7½” / 2.9 m | 11′ 7⅛” / 3.5 m |
| 2015 | 6′ 4″ / 1.93 m | 34″ / 0.86 m | 6′ 4″ / 1.93 m | 6′ 2″ / 1.86 m | 2½” / 64 mm | 6″ / 152 mm | 14′ 2¾” / 4.3 m | 16′ 2½” / 4.9 m |
| 2020 | 6′ 4″ / 1.93 m | 34″ / 0.86 m | 6′ 4″ / 1.93 m | 6′ 2″ / 1.86 m | 2½” / 64 mm | 6″ / 152 mm | 18′ 10″ / 5.7 m | 20′ 9¾” / 6.3 m |
| 2025 | 6′ 4″ / 1.93 m | 34″ / 0.86 m | 6′ 4″ / 1.93 m | 6′ 2″ / 1.86 m | 2½” / 64 mm | 6″ / 152 mm | 23′ 5⅜” / 7.1 m | 25′ 5⅛” / 7.7 m |
| Model No. | Part No. | Description | Footprint | Lifting Height | Load Capacity |
| 2010 | 783700 | 2010 Material Lift | 5′ 2″ x 31¼” / 1.57 x 0.8 m | 10 ft / 3.05 m | 1,000 lbs. / 450 kg |
| 2015 | 783701 | 2015 Material Lift | 5′ 2″ x 31¼” / 1.57 x 0.8 m | 15 ft / 4.57 m | 800 lbs. / 363 kg |
| 2020 | 783702 | 2020 Material Lift | 6′ 1″ x 31¼” / 1.84 x 0.8 m | 20 ft / 6.10 m | 800 lbs. / 363 kg |
| 2025 | 783703 | 2025 Material Lift | 6′ 1″ x 31¼” / 1.84 x 0.8 m | 25 ft / 7.62 m | 650 lbs. / 295 kg |
| 2010G | 783223 | 2010 Material Lift – Galvanized | 5′ 2″ x 31¼” / 1.57 x 0.8 m | 10 ft / 3.05 m | 1,000 lbs. / 450 kg |
| 2015G | 786781 | 2015 Material Lift – Galvanized | 5′ 2″ x 31¼” / 1.57 x 0.8 m | 15 ft / 4.57 m | 800 lbs. / 363 kg |
| 2020G | 786782 | 2020 Material Lift – Galvanized | 6′ 1″ x 31¼” / 1.84 x 0.8 m | 20 ft / 6.10 m | 800 lbs. / 363 kg |
| 2025G | 786783 | 2025 Material Lift – Galvanized | 6′ 1″ x 31¼” / 1.84 x 0.8 m | 25 ft / 7.62 m | 650 lbs. / 295 kg |
| OPTIONAL MATERIAL LIFTS™ ACCESSORIES | |||||
| 2000MBK | 783881 | Mast Brake Kit | n/a | n/a | n/a |
| PCRADLE | 783705 | Pipe Cradle (pair) | n/a | n/a | n/a |
| BOOMA | 783642 | Boom Assembly | n/a | n/a | n/a |
| TA | 786320 | Tray Assembly | n/a | n/a | n/a |
| CFEXTKIT | 783691 | Fork Extension Kit | n/a | n/a | n/a |
| 10WKIT | 7836736 | 10″ wheel kit | n/a | n/a | n/a |
SHIPPING DIMENSIONS
| Model No. | Part No. | Description | Shipping Weight | Shipping Dimensions |
| 2010 | 783700 | 2010 Material Lift | 284 lbs / 129 kg | 36 x 30 x 80″ / 914 × 762 × 2,032 mm |
| 2015 | 783701 | 2015 Material Lift | 322 lbs / 146 kg | 36 x 30 x 80″ / 914 × 762 × 2,032 mm |
| 2020 | 783702 | 2020 Material Lift | 396 lbs / 180 kg | 36 x 30 x 80″ / 914 × 762 × 2,032 mm |
| 2025 | 783703 | 2025 Material Lift | 490 lbs / 222 kg | 40 x 30 x 80″ / 1,016 × 762 × 2,032 mm |
| 2010G | 783223 | 2010 Material Lift – Galvanized | 284 lbs / 129 kg | 36 x 30 x 80″ / 914 × 762 × 2,032 mm |
| 2015G | 786781 | 2015 Material Lift – Galvanized | 322 lbs / 146 kg | 36 x 30 x 80″ / 914 × 762 × 2,032 mm |
| 2020G | 786782 | 2020 Material Lift – Galvanized | 396 lbs / 180 kg | 36 x 30 x 80″ / 914 × 762 × 2,032 mm |
| 2025G | 786783 | 2025 Material Lift – Galvanized | 490 lbs / 222 kg | 40 x 30 x 80″ / 1,016 × 762 × 2,032 mm |
| OPTIONAL MATERIAL LIFTS™ ACCESSORIES | ||||
| 2000MBK | 783881 | Mast Brake Kit | n/a | n/a |
| PCRADLE | 783705 | Pipe Cradle (pair) | n/a | n/a |
| BOOMA | 783642 | Boom Assembly | n/a | n/a |
| TA | 786320 | Tray Assembly | n/a | n/a |
| CFEXTKIT | 783691 | Fork Extension Kit | n/a | n/a |
| 10WKIT | 7836736 | 10″ wheel kit | n/a | n/a |
| Part No. | Description | Max. Height | Lifting Capacity | Lift Weight | Shipping Weight |
| 783700 | Material Lift 2010 | 11 ft 7⅛” / 3.5 m | 1,000 lbs / 455.0 kg | 188 lbs / 85.5 kg | 223 lbs / 104.4 kg |
| 783701 | Material Lift 2015 | 16 ft 2½” / 4.9 m | 800 lbs / 360.0 kg | 280 lbs / 127.3 kg | 315 lbs / 143.2 kg |
| 783702 | Material Lift 2020 | 20 ft 9¾” / 6.3 m | 800 lbs / 360.0 kg | 355 lbs / 161.4 kg | 390 lbs / 177.3 kg |
| 783703 | Material Lift 2025 | 25 ft 5⅛” / 7.7 m | 650 lbs / 300.0 kg | 430 lbs / 195.5 kg | 465 lbs / 211.4 kg |
