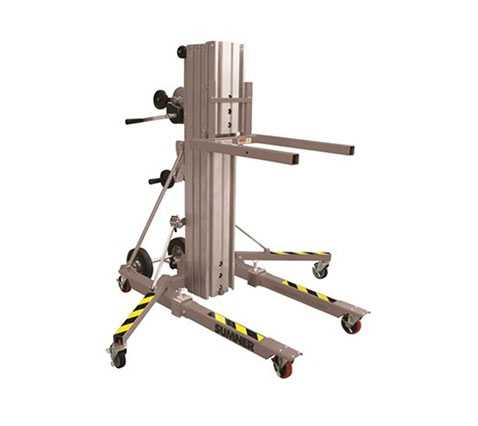

The SHORT STACK™ LIFT (Series 2000 Short Stack) is part of SUMNER MATERIAL LIFTS’ Series 2000 line, offering a compact footprint without compromising lifting power. It handles loads up to 800 lbs / 362 kg and comes in 12 ft / 3.66 m and 16 ft / 4.88 m models. The lift fits through standard doorways, ideal for indoor use. An integrated lifting eye allows it to be flown into position. A pulley guard offers 360° cable protection for operator safety. Forks can be reversed to optimize lift height. Tool-free setup uses plunger pins, reducing lost parts. The internal mast cable prevents exposure. Accessories include a mast brake kit and fork extension. It’s ideal for contractors in confined or elevated spaces.
Series 2000 SHORT STACK™ Lift
Mobile Nav
| Product Name | Part number | Item Length | Height | Width | Weight |

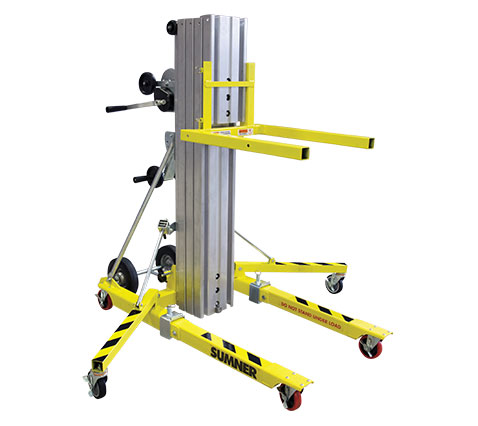

| 2012S SHORT STACK LIFT (12’/800LBS.) – GALVANIZED | 784093 | 36″ (914.4 mm) | 72″ (1828.8 mm) | 36″ (914.4 mm) | 365 lbs (165.56 kg) |

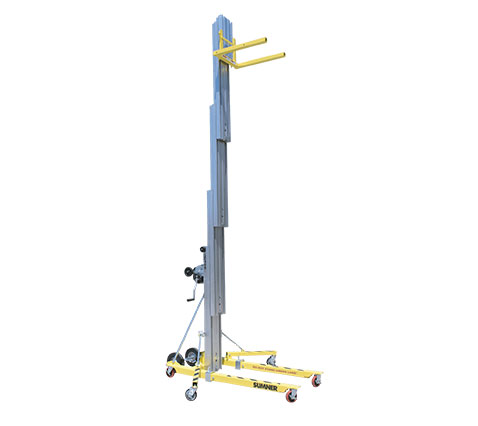

| 2016S LIFT, W/BRK | 786382 | ||||
| 2012S LIFT, W/BRK | 786383 |
Features & Benefits
- Lift up to 800 lbs. at heights from 12’11” to 16’3″
- No tools required and no loose hardware
- Designed for loads up to 800 lbs.
- Forks reverse to maximize lifting height
- Multiple accessories available
